• Maximized Stability – CNC-machined, titanium gold widened triple clamp with upper/lower clamps, steering stem, and widened axle kit for superior support and durability.
• High-Performance Travel – 228mm travel, 37mm stanchion, 74mm caliper mount, and compatibility with 203mm & 220mm disc brakes for extreme riding.
• Advanced Suspension – Inverted oil-spring damping system with independent left/right legs and multi-stage adjustments for high/low-speed compression, rebound, and preload.
• Durable Build – AL6061-T6 & AL7075-T6 aluminum alloys with 55CRSI spring wire for strength and resilience under stress.
• Customizable Performance – Manual adjustment knobs for quick, precise tuning to match different terrains and riding styles.
• Enhanced Bottom-Out Support – Oil pressure system improves stability and impact absorption.
• Reliable Damping – Dual compression valve plates and high-quality shock oil ensure smooth, consistent performance in all conditions.

Version	Normal version	Pro version	Max version
Material	AL6061 Forged Precision Aluminum Plate	AL6061 Forged Precision Aluminum Plate	AL6061 Forged Precision Aluminum Plate
Manufacturing Process	CNC integrated molding with engraved milling patterns	CNC integrated molding with engraved milling patterns	CNC integrated molding with engraved milling patterns
Clamp center distance	146	146	162
Compatible Tire Width	70	70	70/80/90
Impact resistance	Basic	Advanced Enhancement	Advanced Enhancement
Note: The upper crown of the Max version features a recessed crown design, distinguishing it from the Normal and Pro versions.



Weight for 228mm travel fork: (compatible with 19“/21” inches)

• 55lbs spring - 100kg-130kg

FEATURES:

• Center Distance: 750-800mm
• Main Piston Travel: 228mm
• Tube Diameter: ∅37mm
• Caliper Mount Spacing: 74mm
• Disc Brake Size: ∅203mm (Upgradeable)
• Suitable For: Electric Dirt Bikes, Downhill Bikes

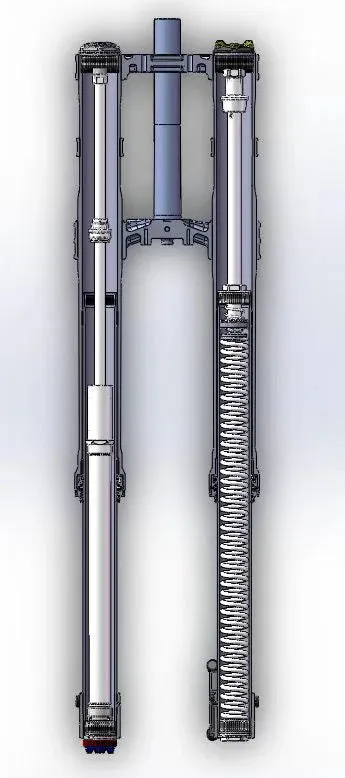

• Damping System: Inverted Oil-Spring
• Adjustments: Multi-stage High-Speed Compression, Low-Speed Compression, Rebound, Spring Preload
• Material: AL6061-T6 Forged Aluminum Alloy Bottom Brackets, AL7075-T6 Aluminum Fork Tubes
• Spring Wire: 55CRSI
• MAX Triple Clamp: CNC Precision Machined

Hawk31 MAX – Frequently Asked Questions

Q: How does the Hawk31 MAX compare to other forks in terms of the triple clamp?
A: The Hawk31 MAX features a widened 16mm triple clamp, allowing compatibility with a wider range of 19”/21” tires. Unlike many forks with limited spacing, this design prevents tire contact and accommodates more bike models. Whether riding smooth terrain or tackling rugged trails, the wider clamp enhances stability and control, making it ideal for high-speed drops and technical mountain trails.

---

Q: Why is the spring preload adjustment on the Hawk31 MAX important compared to Fastace ALX13RC forks?
A: The Hawk31 MAX offers a multi-stage spring preload adjustment, enabling precise tuning for rider weight and terrain. Unlike forks with basic settings, this system optimizes responsiveness and support, enhancing both comfort and control for daily rides and extreme conditions. Riders benefit from customized suspension performance, making the Hawk31 MAX a top-tier choice for demanding trails.
